NETZSCH STATOR
Ürün Açıklaması

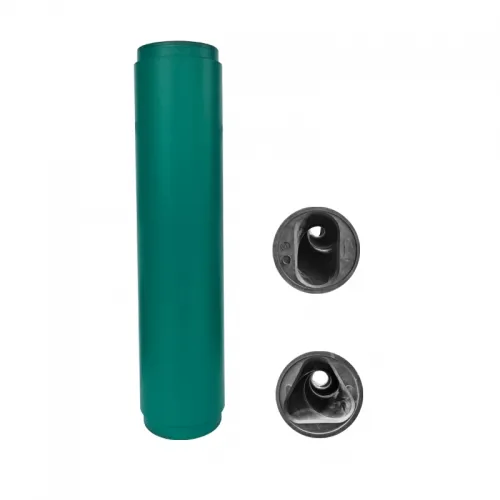

3005 NETZSCH Stator
Yüksek kaliteli ve %100 Uyumlu Muadil NETZSCH Yedek Parçaları
EREN firması olarak, NETZSCH marka pompalar için avrupa menşeili birebir muadil yedek parçalar sunuyoruz
- 7 yıllık NETZSCH yedek parça tedarik deneyimi
- Netzsch® NE, NM, NDP… serisi parçalar için tedarik
- Tüm uygulamalar için %100 uyumlu stator,rotor ve diğer parçalar
Netzsch® pompaları ve NEMO Pompaları için muadil yedek parça satışını yapmaktayız. Netzsch yedek parçalarını değiştirme konusunda çok sayıda başarılı uygulama tecrübemiz var . Dahası, kaliteyi etkilemeden hızlı teslimat yeteneğine sahibiz ve pompanızın hizmet ömrünü geciktiren yeni kauçuk bileşikleri ve temel malzemeleri önerebiliriz.
Pressure Range:04/08/12/18/24bar
Section Geometry S : 1/2 Standard
Section Geometry L : Long Pitch
Material:NBR/EPDM/FKM/HNBR/PTFE
| Pump Stage 1 | Pump Stage 2 | Pump Stage 3 | Pump Stage 4 | Stage 6/8 |
| NM015BY01L06B/V | NM015BY02S12B/V | NM015BY03S18B/V | NM015BY04S24B/V | ...... |
| NM021BY01L06B/V | NM021BY02S12B/V | NM021BY03S18B/V | NM021BY04S24B/V | ...... |
| NM031BY01L06B/V | NM031BY02S12B/V | NM031BY03S18B/V | NM031BY04S24B/V | ...... |
| NM038BY01L06B/V | NM038BY02S12B/V | NM038BY03S18B/V | NM038BY04S24B/V | ...... |
| NM045BY01L06B/V | NM045BY02S12B/V | NM045BY03S18B/V | NM045BY04S24B/V | ...... |
| NM053BY01L06B/V | NM053BY02S12B/V | NM053BY03S18B/V | NM053BY04S24B/V | ...... |
| NM063BY01L06B/V | NM063BY02S12B/V | NM063BY03S18B/V | NM063BY04S24B/V | ...... |
| NM076BY01L06B/V | NM076BY02S12B/V | NM076BY03S18B/V | NM076BY04S24B/V | ...... |
| NM090BY01L06B/V/Z | NM090BY02S12B/V/Z | NM090BY03S18B/V/Z | NM090BY04S24B/V/Z | ...... |
| NM105BY01L06B/V/Z | NM105BY02S12B/V/Z | NM105BY03S18B/V/Z | NM105BY04S24B/V/Z | ...... |
| NM125BY01L06B/V/Z | NM125BY02S12B/V/Z | NM125BY03S18B/V/Z | NM125BY04S24B/V/Z | ...... |
| Double Head &Stage 1 | Double Head &Stage 2 | Other Netzsch Model |
| NM015BY01P05B/V | NM015BY02D12B/V | NM003BY11S12B |
| NM021BY01P05B/V | NM021BY02D12B/V | NM005BY06S12B |
| NM031BY01P05B/V | NM031BY02D12B/V | NM008BY03S18B |
| NM038BY01P05B/V | NM038BY02D12B/V | NM011BY01L06B |
| NM045BY01P05B/V | NM045BY02D12B/V | NM011BY02S12B |
| NM053BY01P05B/V | NM053BY02D12B/V | ....... |
| NM063BY01P05B/V | NM063BY02D12B/V | ....... |
| NM076BY01P05B/V | NM076BY02D12B/V | ....... |
| NM090BY01P05B/V | NM090BY02D12B/V/Z | ....... |
| NM105B/VY01P05B/V/Z | NM105BY02D12B/V/Z | ....... |
| NM125BY01P05B/V/Z | NM125BY02D12B/V/Z | ....... |
The stator housing can be made of cast steel and stainless, and the internal rubber materials are nbr,hnbr,epdm rubber,fkm etc.
