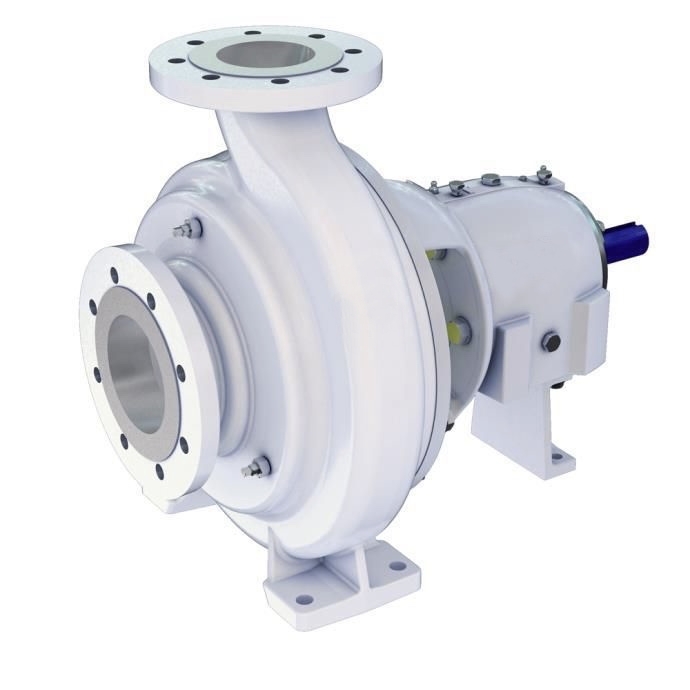

Bareshaft pump for Sulzer Ahlstrom range A, N and W.

100% interchangeable / made in Germany

The bare shaft pump has the same hydraulic characteristics as the original and benefits from our OEM warranty..

Different material available like A890-3A, DUPLEX 0141, 015B, 014T, other upon request.

Bearing unit grease or oil lubrification / Sealing unit packing, mechanical seal or dynamical sealing.

BPO (Back Pull Out) for Sulzer* Ahlstrom* range A, N and W

100% interchangeable / made in Germany

Our BPO meet the same hydraulic characteristics to original and get our OEM warranty.

Different material available like A890-3A, DUPLEX 0141, 015B, 014T, other upon request.

Bearing unit grease or oil lubrification / Sealing unit packing, mechanical seal or dynamical sealing.

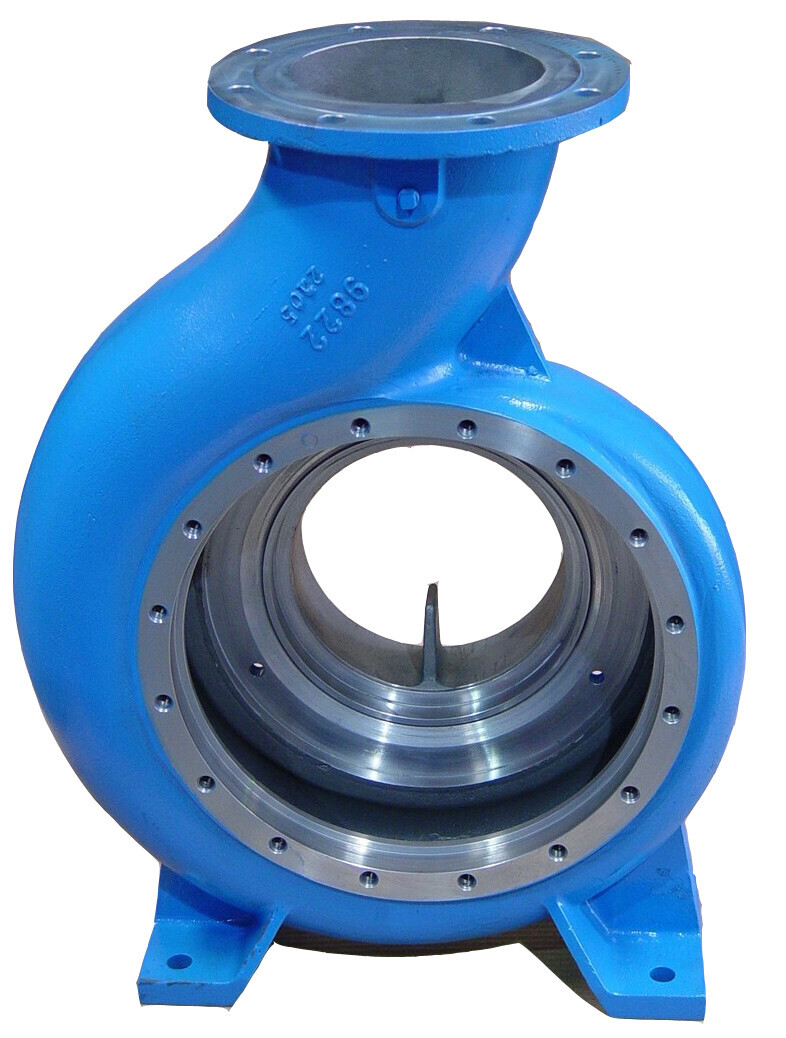

Casing for closed / vortex / open / special open impeller

Pos. 102

Complete bearing unit (oil / grease version) / bearing housing / lantern / frame adaptor / bearing cover

Pos. 013 / 330 / 339 / 344 / 360

Shaft

Pos. 210

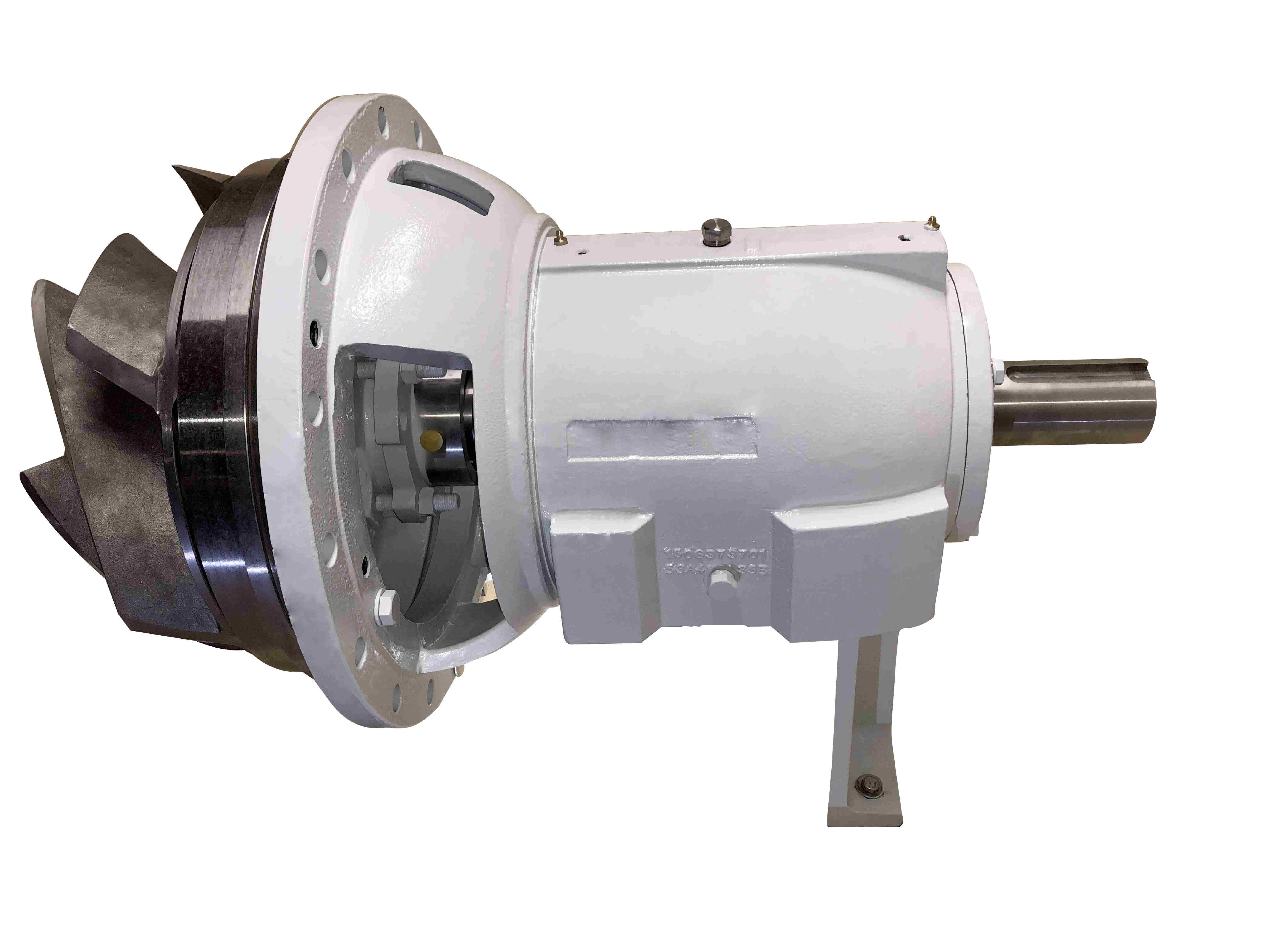

Back pull out

Back pull out for APP, NPP, WPP, A, N, W range

Closed impeller

Pos. 230

Open impeller

Pos. 230

Special open impeller

Pos. 230

Non-clogging closed or open (channel type) impeller for NSP / NRP / ARP / ASP range

Pos. 230

Repeller for ASP / ARP / NSP / NRP range

Pos. 604

Expeller for dynamic sealing

Pos. 604

Stuffing box housing

Pos. 451

Casing cover for packing / cover for dynamical sealing

Pos. 161 / Pos 161.2

Sideplate for open / special open impeller

Pos. 135

Wear ring for closed impeller

Pos. 502

Headbox feed pump impeller for ZPP and Z22

Pos. 230

Medium consistency impeller for MC / MCE / MCV range

Pos. 230

All service kits

Impeller service kit / sideplate service kit / dynamic sealing service kit / bearing unit service kit

Spares

Pos. 471.2 Gland / Pos. 507 Deflector / Pos. 452 Packing gland / Pos. 458 Lantern ring / Pos. 931 Washer / Pos. 456 Bushing / Pos. 435 Gasket / Pos. 475 Sealing ring

Labyrinth ring

Pos. 423 / 423.2

100% high quality warranted MECHANICAL SEALS
